AP Range Wood Lathes

High Quality, Ideal for Educational Use

AP Range Wood Lathes

AP Range Wood Lathes

Prices
(excluding VAT)
Machines
Essential Extras
Extraction is essential when using a wood lathe. We offer a range of extractors to suit all budgets/requirements. Please contact us for more details.
Product Description
Most quality wood turning lathes on the market are either traditional designs for craft turning, or are aimed at small-scale production. These top quality machines are the best of both worlds, and will be an asset to any modern workshop. Constructed almost entirely from cast iron, the bed is wide and well braced. With heavy duty tool rests and a cast-iron stand, vibration simply isn’t an issue. With any turning project, speeds will be changed regularly with each stage of the process – often meaning a laborious belt change assistance from a teacher or technician. These machines are fitted with inverter controlled electronic variable speed with digital readout allowing speed to be fine-tuned while the machine is running. The headstock slides right along to the tailstock end of the bed and swivels through 360°, indexing at fixed intervals locked with a threaded pin. All this provides endless versatility for a wide variety of applications, and offers great improvements in ergonomic comfort for the user compared to traditional machines.
AP350WL (ASR Safety) Wood Lathe
Machine Package for Bench Mounting
ProductsPriceBuy
AP350WL (ASR Safety) 400mm 0.75kW Bench Mounted Wood Lathe (1 phase)
inc. Emergency Footstop, 4 Jaw Lathe Chuck including Dovetail Jaws, Internal & External Safety Jaws, Faceplate dia. 150mm with holes, Screw Chuck
Order Code: MM-WOODLATHE39P
£1,980.00
Optional Bed Extension
ProductsPriceBuy
280mm Bed Extension for AP350WL Lathe
Order Code: MM-WOODLATHE33C
£220.00

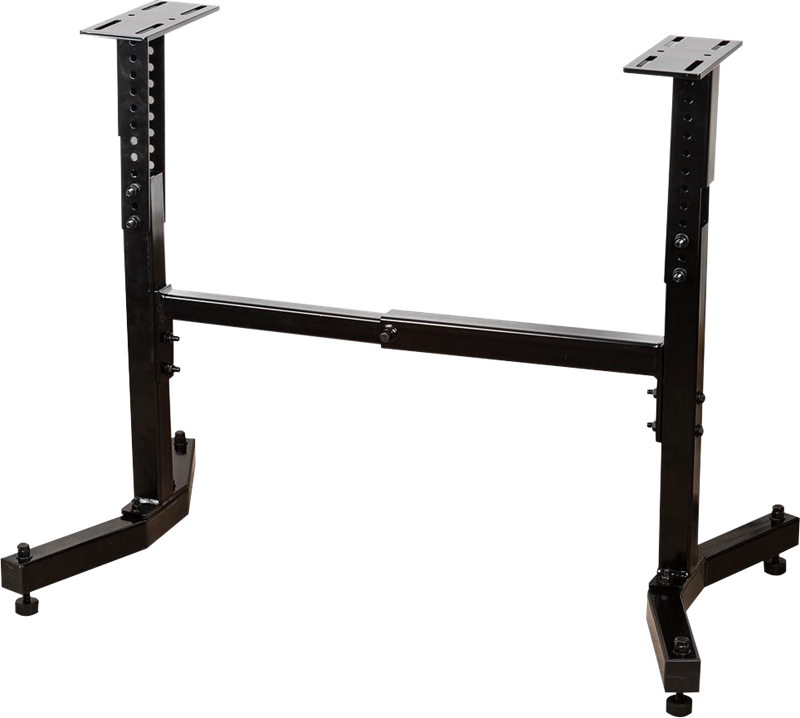

Machine Package with Stand and Bed Extension
ProductsPriceBuy
AP350WL (ASR Safety) 680mm 0.75kW Floor Standing Wood Lathe including Bed Extension (1 phase)
inc. Stand, Bed Extension, Emergency Footstop, 4 Jaw Lathe Chuck including Dovetail Jaws, Internal & External Safety Jaws, Faceplate dia. 150mm with holes, Screw Chuck
Order Code: MM-WOODLATHE40P
£2,330.00
Essential Extraction
Extraction is essential when using a wood lathe. We offer a range of extractors to suit all budgets/requirements. Please contact us for more details.
AP406WL (ASR Safety) Wood Lathe
Machine Package for Bench Mounting
ProductsPriceBuy
AP406WL (ASR Safety) 710mm 1.5kW Bench Mounted Wood Lathe (1 phase)
inc. Emergency Footstop, 4 Jaw Lathe Chuck including Dovetail Jaws, Internal & External Safety Jaws, Faceplate dia. 150mm with holes, Screw Chuck
Order Code: MM-WOODLATHE41P
£2,960.00
Optional Bed Extension
ProductsPriceBuy
460mm Bed Extension for AP406WL Lathe
Order Code: MM-WOODLATHE31A
£275.00
Machine Package with Stand and Bed Extension
ProductsPriceBuy
AP406WL (ASR Safety) 710mm 1.5kW Floor Standing Wood Lathe with Bed Extension (1 phase)
inc. Emergency Footstop, 4 Jaw Lathe Chuck including Dovetail Jaws, Internal & External Safety Jaws, Faceplate dia. 150mm with holes, Screw Chuck
Order Code: MM-WOODLATHE42P
£3,845.00
Essential Extraction
Extraction is essential when using a wood lathe. We offer a range of extractors to suit all budgets/requirements. Please contact us for more details.
AP508WL (ASR Safety) Wood Lathe
Machine Package with Stand and Bed Extension
ProductsPriceBuy
AP508WL (ASR Safety) 762/1262mm 2.2kW Floor Standing Wood Lathe (1 phase)
inc. Emergency Footstop, Floor Stand, 4 Jaw Lathe Chuck including Dovetail Jaws, Internal & External Safety Jaws, Faceplate dia. 150mm with holes, Screw Chuck
Order Code: MM-WOODLATHE38P
£4,990.00
Essential Extraction
Extraction is essential when using a wood lathe. We offer a range of extractors to suit all budgets/requirements. Please contact us for more details.
Product Specifications
Specifications
Model:AP350WLAP406WLAP508WL
Distance Between Centres:400mm (without bed extension)

680mm (with bed extension)
710mm762mm (without bed extension)

1262mm (with bed extension)
Swing Over Bed:350mm406mm508mm
Spindle Speeds:80 - 800 / 170 - 1,700 / 350 - 3,700rpm (var)50 - 1,250 / 150 - 3,750rpm (var)60 - 1,200 / 100 - 2,200 / 140 - 3,700rpm (var)
Motor:0.75kW1.5kW2.2kW
Weight:41kg (without stand)96kg (without stand)

160kg (without stand)
280kg
Dimensions:830(W) x 330(D) x 430(H)mm (without stand)1615(W) x 480(D) x 550(H)mm (without stand)

1615(W) x 480(D) x 1340(H)mm (with stand)
1850(W) x 560(D) x 1230(H)mm (without bed extension)

2370(W) x 890(D) x 1230(H)mm (without bed extension)
Power Requirements:240V 0.75kW
Lockable rotary isolator
240V 1.5kW
Lockable rotary isolator
240V 2.2kW
Lockable rotary isolator
Warranty:UK Mainland: 3 Year Return to Base
Elsewhere: 3 Year Return and Collect
UK Mainland: 3 Year Return to Base
Elsewhere: 3 Year Return and Collect
UK Mainland: 3 Year Return to Base
Elsewhere: 3 Year Return and Collect
